PCB

  • Product Introduction

    • Protection from Moisture、Fungous、Oxidation and Corrosion
    • Fast Dry with Solvent Type、Environmental Friendly with Water Base、Solventless UV cure
    • Transparent (Repairable)、Black (Confidential)
    • UL94 V-0 Flame Retardant
    • Compliance with MIL-I-46058C
    • Compliance with IPC-CC-830B

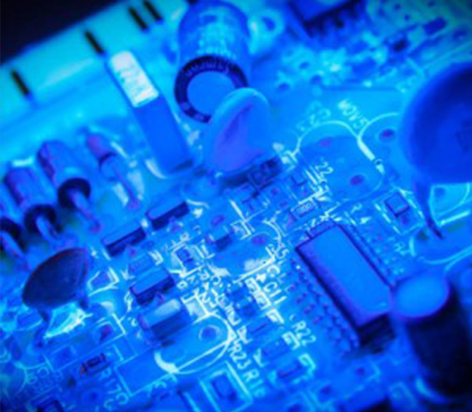

    • Ambient / UV cure

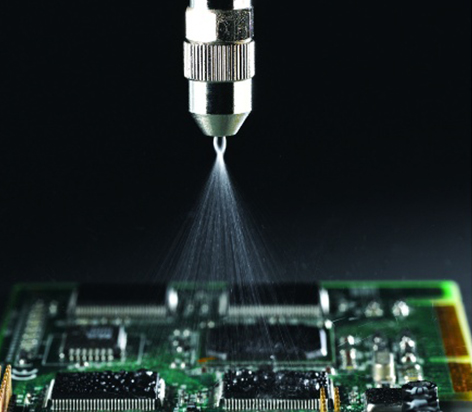

    • Spray、Brush、Dip Application
  • Thin Coating
  • Thick Coating

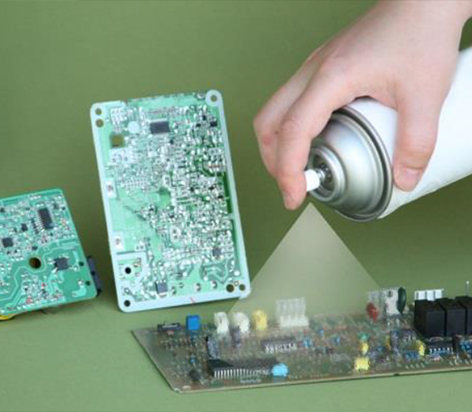

  • Spray Can
  • Non-flammable Cleaner
  • Solder Mask
Part No. Material Viscosity
(Cps)
Tackfree
Time
@25℃
Curing
Schedule
25℃/60℃
Thermal
Class
(℃)
Dielectric
Strength
(kV/mm)
PDF
JD-5086-80
JD-5086-250
JD-5086-500
(UL)
urethane-acrylic
( Clear )
80
250
500
- Rapid (UV+Moisture) -40~125 60
JD-4993
(UL)
Modified Polyurethane
( Amber Transparent )
60 10min 25°C x 16hr
80°C x 30min
-40~125 105
JD-625
(UL)
Silicone
(Transparent)
1000 30min 1day/6-10hr -50~200 20
JD-5702
(UL)
Silicone
(Transparent)
600 40min 1day / 25°C x 1hr +
60°C-80°C x 1-3hr
-50~200 30
JD-727
(UL, 100% Solid)
Silicone
( Transparent )
550 10min 24hr@RT
3hr@60C
-40~200 20
PL 4122-E BLF FLZ
PL 4122-37E
PL 4122-40E
PL 4122-45E
(UL, BMW approved)
modified alkyd
( Clear )
~50
~85
~260
15min 16hr@RT
30min@80C
-40~125
Max 134
112
CE-1170
(UL, MIL, IPC)
Acrylic
(Transparent)
400 15min 1day/45min -65~125 118
CE-1171
(UL, MIL, IPC)
Acrylic
(Transparent)
900 20min 1day/1hr -65~125 118
CE-1164
(UL, MIL, IPC)
PU
(Transparent)
100 30min 1day/3hr -65~125 138
CE-1155AB
( UL, MIL, IPC)
Two Part PU
(Transparent)
72 5hrs 5day/3hr -65~125 118
JD-258
(UL)
molified PU
( Clear )
520 20min 24hr@RT
3hr@60C
-20~100 14
JD-32
(UL, 100% Solid)
urethane-acrylic
(Transparent)
380 - Rapid (UV+Moisture) -40~120 30
UR-101HV
UR-101MV
UR-101LV
(100% Solid)
urethane-acrylic
(Transparent)
650
130
75
- Rapid (UV+Moisture) -65 to +125 19
Fine-L-Kote HT 2106
(MIL, IPC)
Silicone
(Transparent)
30 45min 24hr/49°C x 15min -40~350 22
60-7155
(100% Solid)
Epoxy
(Transparent)
1000 1hrs UV Light 2-5 sec -50~200 17
JD-1105 Synthetic Resin
(Transparent)
53 15min 1day/1hr -40~180 134
VA42 Synthetic Resin
( Red )
345 15min 1day/1hr 180 108
CP-2000
(Corrosion Resistant)
PU
( Black )
220 6hrs 24hr/121°C x 1hr -65~204 39
Part No. Material Viscosity
(Cps)
Tackfree
Time
@25 ℃
Curing
Schedule
25 ℃ /60 ℃
Thermal
Class
(℃)
Dielectric
Strength
(kV/mm)
PDF
471-5LLHV (UL) Two Part EPOXY
( Black )
Thixotropic 16 hrs 25℃ x 24hr or
80℃ x 4hr
-40~130 20
50-3186NC
+ Cat.190
Two Part EPOXY
( Black )
Thixotropic 8 hrs 25℃ x 24hr or
60℃ x 2hr
-40~230 15
Part No. Material Viscosity
(Cps)
Tackfree
Time
@25℃
Curing
Schedule
25℃/60℃
Thermal
Class
(℃)
Dielectric
Strength
(kV/mm)
PDF
CE-1170
(UL, MIL, IPC)
Acrylic
(Transparent)
Spray 15min 1day/45min -65~125 118
Part No. KB value Evap. rate Dielectric
Strength
(kV/mm)
Compatibale Materials
PDF
PWR-4 3400 100 0.3 23 Nylon66、Teflon、PVC、PP、PEX、HDPE etc.
Solder Mask Description PDF
TC-533 TC-533 is a high temperature flexible solder masking compound specially formulated and technically enhanced so it can be applied to those areas of printed circuit boards which require making during a wave soldering process.
