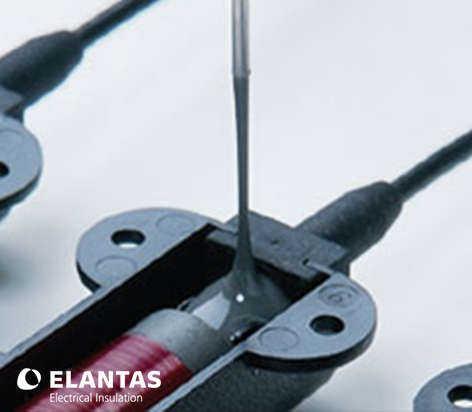

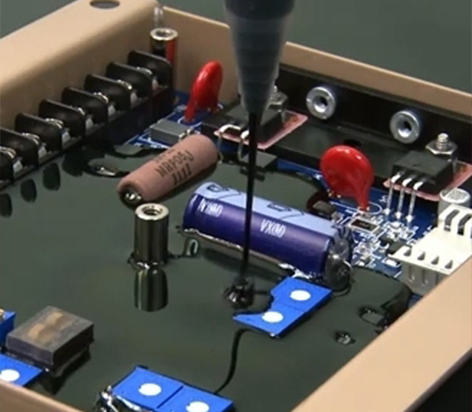

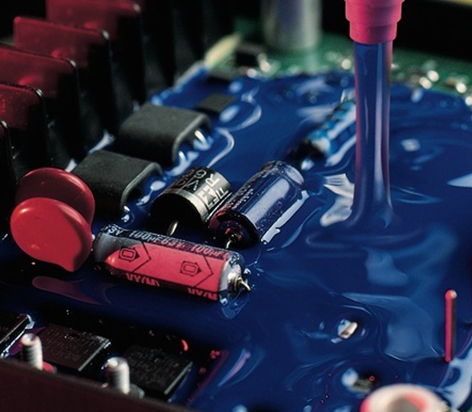

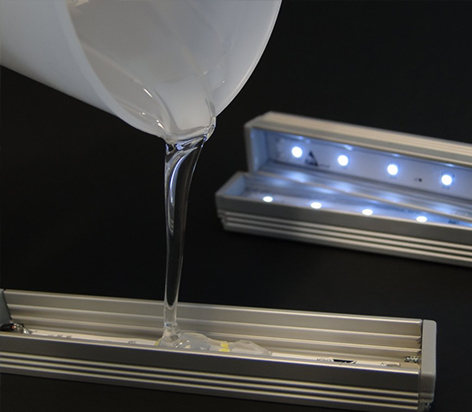

Potting Compound

  • Product Introduction

    • Flame Retardant (UL94 V-0)
    • Low Shrinkage
    • Water Proof、High Weatherability
    • High Voltage Resistant、High Thermal Conductivity
    • Solvent Resistant
    • High Temperature Application(1600℃)
    • Low Temperature Application(-65℃)
    • Ambient or Heat Cure
    • Single or Two Components Resin

UL Potting Compounds

  • Epoxy
  • PU
  • Silicone
  • High Temp. Ceramic
  • Release Agent
Part No. Viscosity
(CPS)
Color Pot Life
(@25 ℃)
Curing
Schedule
Hardness
(D)
Thermal Class
(℃)
Thermal
Conductivity
(W/mK)
PDF
JP-131 1000 Dark Grey 3hr 80°C x 4hr or
100°C x 3hr
72 110 > 6
(7.93)
ask
JP-6435
(56kV/mm)
2400 Black 3hr 80°C x 3hr 65 155 1.6 ask
MC62/W363NF
(UL)
1800 All 25min 25℃ x 24hr 88 155 0.9
JP-250
(UL)
2500 Balck
(Various Color)
-- 25℃ x 16-24hr/
60℃ x 2-4hr
86 130 0.6
471-5LL
471-5LL HV
(UL)
2500
Thixotropic
(Paste)
Balck 2.5hr 25℃ x 24hr/
80℃ x 4hr
80 130 0.5
5262
(UL)
2000 All 40min 25℃ x 24hr 85 180 0.9
50-3150FR/Cat.30
(UL)
17000 Balck >45min 85℃ x 3-4hr/
100℃ x 2-3hr
Best +185℃ x 2hr
90 -60~200 2.16
50-3152FR
(UL)
31000 Balck 100min 25℃ x 24hr 80 135 1.01
70-3812NC 8000 Grey 5hr 25℃ x 24hr
65℃ x 45min
125℃ x 20min
90 155 4.5
526N
(NASA)
8500 Amber 2.5hr 93℃ x 2hr+
163℃ x 2hr
89 -60~300 ---
805 11000 Gray 60min 38℃ x 24hr+
93℃ x 2hr
87 -70~300 1.8
813-9 140000 Dark Brown 16hr 93℃ x 16hr+
149℃ x 1hr/
177℃ x 4hr
95 316 0.3
E88/C89
(UL)
600(90℃) Tan NA 135℃ x 1h 87 180 1.05
494RQ 35000 Tan 2-3days 135℃ x 4-6hr 80 -55~180 0.4
174 AB 600 Clear 2hr 23℃ x 16hr/
80℃ x 1hr
80 130 0.33
Part No. Viscosity(CPS) Color Pot Life
(@25 ℃)
Curing
Schedule
Hardness
(D)
Thermal Class
(℃)
PDF
UP-5440 1700 Clear (UV durability) 20-30min 25℃ x 24hr or 60℃ x 3hr 50-60(A) 130
CS-313 8,000 Black 4-6min 80℃ x 16hr 85(A) 130
X1087BK 2300 Balck 20min 25℃ x 24hr 87(A) 130
20-2362FR
(UL)
2500 Balck 20min 25℃ x 24hr 90(A) 125
50-2369FR
(UL)
7000 Dark Gray - 25℃ x 24hr 75(D) 135
20-2180 1700 Balck < 20min 25℃ x 24hr
65℃ x 1.5hr
85℃ x 40min
80(A) 125
EN-21AB
(UL)
2000 Clear
Amber
50min 25℃ x 7days/
80℃ x 4hr
80(A) 130
EN-2550AB
(UL)
3000 Balck 53min 25℃ x 7days/
100℃ x 4hr
53 130
20-2135 1900 Clear、Balck 45min 25℃ x 24hr 35(A) 120
Part No. Viscosity(CPS) Color Pot Life
(@25 ℃)
Curing
Schedule
Hardness
(D)
Thermal Class
(℃)
PDF
SP-325 1300 Clear 60min 25℃ x 24hr 15(A) 200
SP-355
(UL)
3400 Dark Gray 1.5-3hr 25℃ x 24hr 50(A) 200
SP-525 1200 Clear 120min 25℃ x 12hr Gel 200
SP-8845 2300 Black 40min 25℃ x 24hr 24(A) 180
Part No. Viscosity(CPS) Color Pot Life
(@25 ℃)
Curing
Schedule
Hardness
(D)
Thermal Class
(℃)
PDF
586 15000 White 1-2hr 25℃ x 8hr+
93℃ x 2-4hr+
121℃ x 3hr
-------- 1535
Part No. Color Flash Point PDF
Salease Classic Clear -4°C
