Sleeving / Tubing

  • Electrical Insulation
  • Thermal Protection
  • Wiring Protection

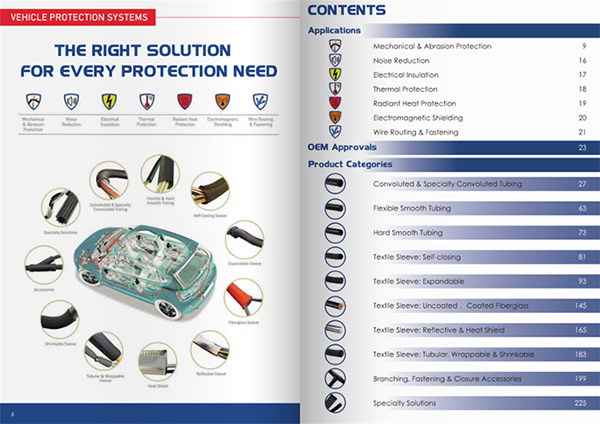

  • Vehicle Protection Systems
Photo Product Max temp. (°C) Material and Construction NEMA
NU-SLEEVE SG-240 -80 ~ 240 High temperature silicone coated fiberglass sleeve. A
NU-SLEEVE SG-200 -55 ~ 200 Silicone coated fiberglass sleeve. A
B
C1
C2
C3
NU-SLEEVE VG-130 -20 ~ 130 Vinyl coated fiberglass sleeve. A
B
C1
NU-SLEEVE VPI-155 -10 ~ 155 Acrylic coated fiberglass sleeve with bonded overbraid outer layer. A
NU-SLEEVE VPI-200 -10 ~ 200 Double wall silicone coated fiberglass sleeve and overbraided with 3-ply fiberglass. A
NU-SLEEVE AG-155 -40 ~ 155 Acrylic coated fiberglass sleeve. A
B
C1
C2
C3
NU-SLEEVE AG-155 S -40 ~ 155 Acrylic coated fiberglass sleeve. 12KV
NU-SLEEVE T117-E -55 ~ 200 High temperature silicone rubber extruded onto braided fiberglass sleeve. 10KV
A
B
C1
NU-SLEEVE T117-FR -55 ~ 200 High temperature silicone rubber extruded onto braided fiberglass sleeve. A
B
C1
NU-SLEEVE T117-HV -55 ~ 200 High temperature thicker silicone rubber extruded onto braided fiberglass sleeve. 10KV
15KV
20KV
30KV

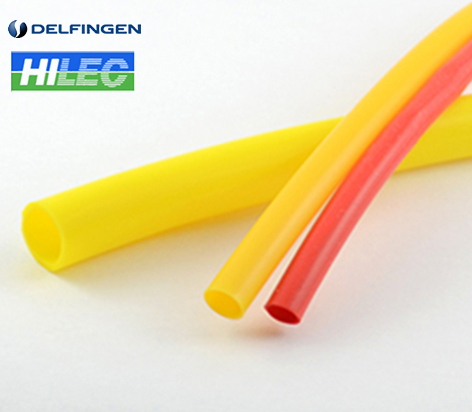

SILICONE T117U -55 ~ 200 Silicone extruded unsupported tube. 10KV
15KV

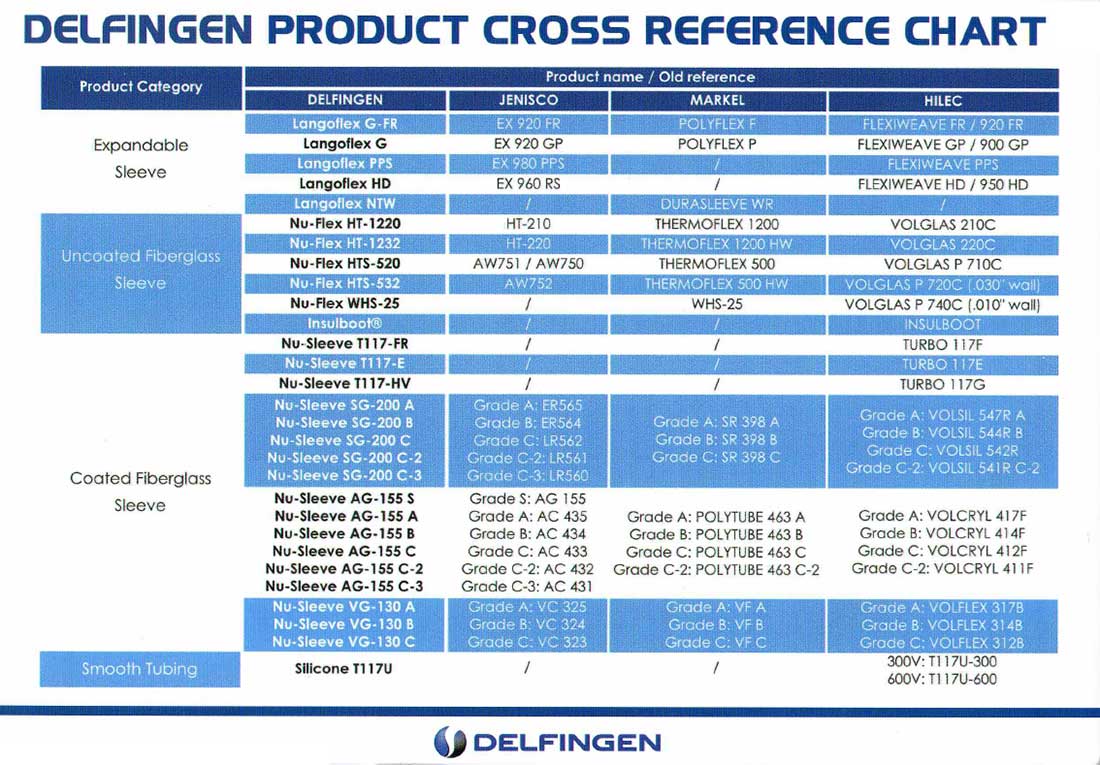

Delfingen、Hilec、Jenisco、Markel 產品型號對照表



http://insulation-sleeving.delfingen.com/
    以上資訊皆由 所提供。

Photo Product Max temp. (°C) Material and Construction Flame Retardant
INSULBOOT -70 ~ 650 Heat treated fiberglass sleeve.
UL VW-1
NU-FLEX HT -70 ~ 600 Heat treated fiberglass sleeve. UL VW-1
NU-FLEX HTS -70 ~ 600 Heat treated and saturated fiberglass sleeve. UL VW-1
NU-FLEX WHS-25 -70 ~ 600 Encapsulated fiberglass sleeve.
UL VW-1
NU-SLEEVE SG-240 -80 ~ 240 High temperature silicone coated fiberglass sleeve. UL VW-1
NU-SLEEVE SG-200 -55 ~ 200 Silicone coated fiberglass sleeve. UL VW-1
NU-SLEEVE SG-200 HW -70 ~ 260 High temperature & Heavy wall silicone coated fiberglass sleeve. UL VW-1
NU-SLEEVE T117-E -55 ~200 High temperature silicone rubber extruded onto braided fiberglass sleeve. -
NU-SLEEVE T117-FR -55 ~ 200 High temperature silicone rubber extruded onto braided fiberglass sleeve. UL VW-1
NU-SLEEVE T117-HV -55 ~ 200 High temperature thicker silicone rubber extruded onto braided fiberglass sleeve. -
NU-SLEEVE VPI-200 -10 ~ 200 Double wall silicone coated fiberglass sleeve and overbraided with 3-ply fiberglass. UL VW-1
SILICONE T117U -55 ~ 200 Silicone extruded unsupported tube. UL VW-1
NU-KOOL T2-G -40 ~ 200 Tubular fiberglass sleeve wrapped with an aluminum film. Yes
NU-KOOL T-G -40 ~ 200 Tubular fiberglass sleeve wrapped with an aluminum film. Yes
NU-KOOL SC-G -40 ~ 150 Fiberglass and polyester laminated sleeve with an aluminum film. Yes
NU-KOOL T-P -40 ~ 150 Tubular polyester sleeve wrapped with an aluminum film. Yes
NU-SLEEVE SG-200 ALU -70 ~ 200 Aluminum silicon coated fiberglass sleeve. No
NU-SHIELD FG/FGA 175 (FGA)
225 (FG)
Fiberglass woven laminated with an aluminized foil (Nu-Shield FG).
Adhesive version: coated with a high temperature pressure sensitive adhesive (Nu-Shield FGA).
Yes
NU-SHIELD FG2/FG2A 175 (FG2A)
225 (FG2)
Fiberglass woven laminated with an aluminized foil (Nu-Shield FG2).
Adhesive version: coated with a high temperature pressure sensitive adhesive (Nu-Shield FG2A)
Yes

Delfingen、Hilec、Jenisco、Markel 產品型號對照表



http://insulation-sleeving.delfingen.com/
    以上資訊皆由 所提供。

Photo Product Max temp. (°C) Material and Construction Flame Retardant
NU-FLEX WHS-25 600 Encapsulated fiberglass sleeve. UL VW-1
LANGOFLEX G 150 PET .010" (0.25mm) monofilament sleeve. Yes
LANGOFLEX G-FR 150 PET .010" (0.25mm) monofilament sleeve. UL VW-1
LANGOFLEX NTW 125 Polyamide multifilament sleeve. Yes
LANGOFLEX PET V0 150 PET .010" (0.25mm) monofilament sleeve. UL94 V-0
LANGOFLEX PPS 200 Polyphenylene Sulfide (PPS) .010" (0.25mm) monofilament sleeve. Yes
LANGOFLEX HD 150 PET .015" (0.38mm) monofilament sleeve. Yes
LANGOFLEX DP 150 PET duo combination monofilaments sleeve.
3 constructions available: light (Langoflex DP-L),
standard (Langoflex DP-S) and tight (Langoflex DP-T).
Yes
NU-GUARD SC-P FR 150 Flat-knit PET monofilament and textured multifilament
combination shaped cylindrical with an overlap (self-closing sleeve).
UL94 V-0
NU-GUARD SC-P 150 Flat-knit PET monofilament and textured multifilament
combination shaped cylindrical with an overlap (self-closing sleeve).
Yes
NU-GUARD SC2-P 150 Flat-knit PET monofilament and textured multifilament
combination shaped cylindrical with an overlap (self-closing sleeve).
Yes
NU-GUARD SC2-P ADH 150 Flat-knit PET monofilament and textured multifilament
combination shaped cylindrical with an overlap (self-closing sleeve)
with an acrylic adhesive film.
Yes
NU-TUBE PA 125 Polyamide multifilament tight weaved sleeve. Yes
NU-WRAP PA 125 Polyamide multifilament woven band with integrated hook/loop system. Yes
NU-SHRINK 125 Heat shrinkable tubular sleeve made of a combination of
polyethylene and polyester multifilament.
Yes
