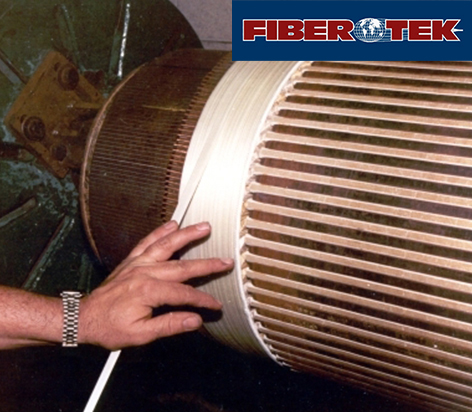

Fibertek B-stage Fiberglass Banding Tape

Purpose Fix core for transformer and rotor for motor
Spec Thickness 0.015 inch ~0.019 inch
Length 100 yard ~2,000 yard
Width Part No. Width(± 0.07 inch) Part No. Width(± 0.07 inch)
B-0022 0.187" B-0622 0.750"
B-0122 0.125" B-0822 1.000"
B-0222 0.250" B-1222 1.500"
B-0322 0.375" B-1622 2.000"
B-0422 0.500" B-2422 3.000"
Property Type Percent Resin Thermal Rating
Type F 27% 220℃
Type R 32% 155℃
Type G 27% 155℃
Type M 27% 220℃(Humidity Resistant)
Tensile Strength Part No. Tensile Strength Part No. Tensile Strength
B-0322-F 0810LB/cycle B-0622-R 1580LB/cycle
B-0322-G 0790LB/cycle B-0822-F 2160LB/cycle
B-0322-R 0790LB/cycle B-0822-G 2110LB/cycle
B-0622-F 1620LB/cycle B-0822-R 2110LB/cycle
B-0622-G 1580LB/cycle _ _
To tru6vu04est immediately after curing at 150℃ × 5hr
Ultimate Tensile Strength 240,000 PSI
Dielectric Strength Type F,M 400 Volt/mil
Type R,G 300 Volt/mil
Elongation 2~3 %
Recovery after Elongation 100%
Are Resistance >120 sec
Curing Schedule 150℃ x 3-5hr
Volumetric Shrinkage 8%
Linear Shrinkage of Glass 0%
Storage Under 10℃,or more than 1 year
25℃,for 6 month

Fibertek B-stage Edging Tape

Purpose Assure band the strongest, secure and accurate possible
Spec Part No. Bead Diameter Width
FRS321 3/32" 1"
FRS521 5/32" 1"
FRS361.5 3/16" 1-1/2"
FRS363 3/16" 3"
FRS142 1/4" 2"
Core Length 10 inch
Core ID 3 inch
Yardage 100 Yard

Fibertek Banding Film

Purpose Enhance the performance and the appearance
Spec Part No. Width
FRB0075 3/4"
FRB0100 1"
FRB0150 1-1/2"
FRB0200 2"
FRB0300 3"
FRB0400 4"
Thickness 0.001 inch
Core ID 3 inch
Length 200 yard
Shrink Facto 5%

Fibertek B-stage Sealable Armor Tape

Purpose Assure a complete seal, should be half lapped over the entire area
Spec Part No. Width Length
FRF075 3/4" 36 yard
FRF100 1" 36 yard
Thermal Class Class F (155℃)
Tensile Strength 40 Lbs/ inch
Dielectric Strength 2100 Volt/mil
Resin Content 65%
Curing Schedule 150℃×3hr or 170℃×1hr

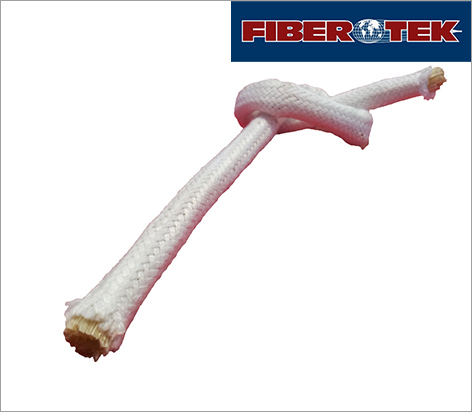

Fibertek B-stage Surge Rope

Purpose Design for a rigid insulating and high mechanical strength
Spec Part No. Diameter Length
SRR14 1/4" 100
SRR38 3/8" 100
SRR716 7/16" 100
SRR12 1/2" 50
SRR58 5/8" 50
SRR34 3/4" 50
SRR78 7/8" 50
Thermal Class 220 ℃
Resin Content 35%
Curing Schedule 150 ℃ × 3hr
Storage Under 10℃ for more than 1 year
25℃ for 6 month

Fibertek Coilband-transformer Tensile Tape

Purpose Replace woven cotton tape and webbing
Spec Part No. Width Thickness Tensile
Strength
Length
CB12500S 1/2" .007" 60 Lbs 500 Yd. Spool
CB34100B 3/4" .007" 90 Lbs 100 Yd. Spool
CB34500S 3/4" .007" 90 Lbs 500 Yd. Spool
CB38100B 3/8" .007" 45 Lbs 100 Yd. Spool
CB381000S 3/8" .007" 45 Lbs 1000 Yd. Spool
CB381000SO 3/8" .010" 80 Lbs 1000 Yd. Spool
CB38500SO 3/8" .010" 80 Lbs 500 Yd. Spool
CB58500S 5/8" .007" 75 Lbs 500 Yd. Spool

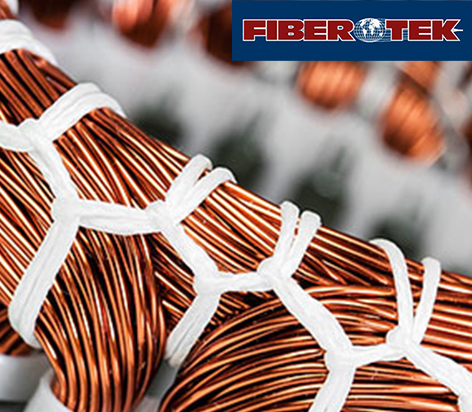

Lacing Tape

Brands Part No.
American Efird LP1552
Western Filament 50DOF17W
