Varnish

  • Product Introduction

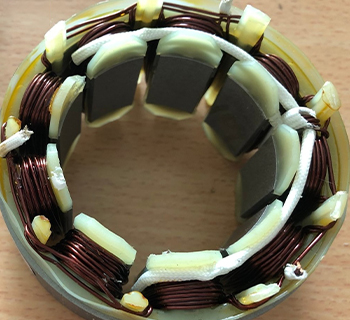

    • Apply UL1446/IEC85 Class B(130℃)~S(240℃) Insulation System for Manufacture
    • Solventless Varnish Has High Flash Point、no VOC
    • Freon Resistance、High Thermal Conductivity and Strong Bonding

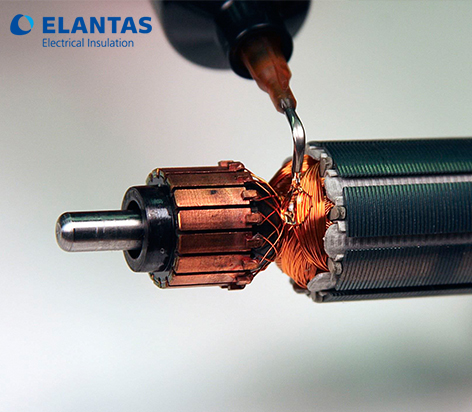

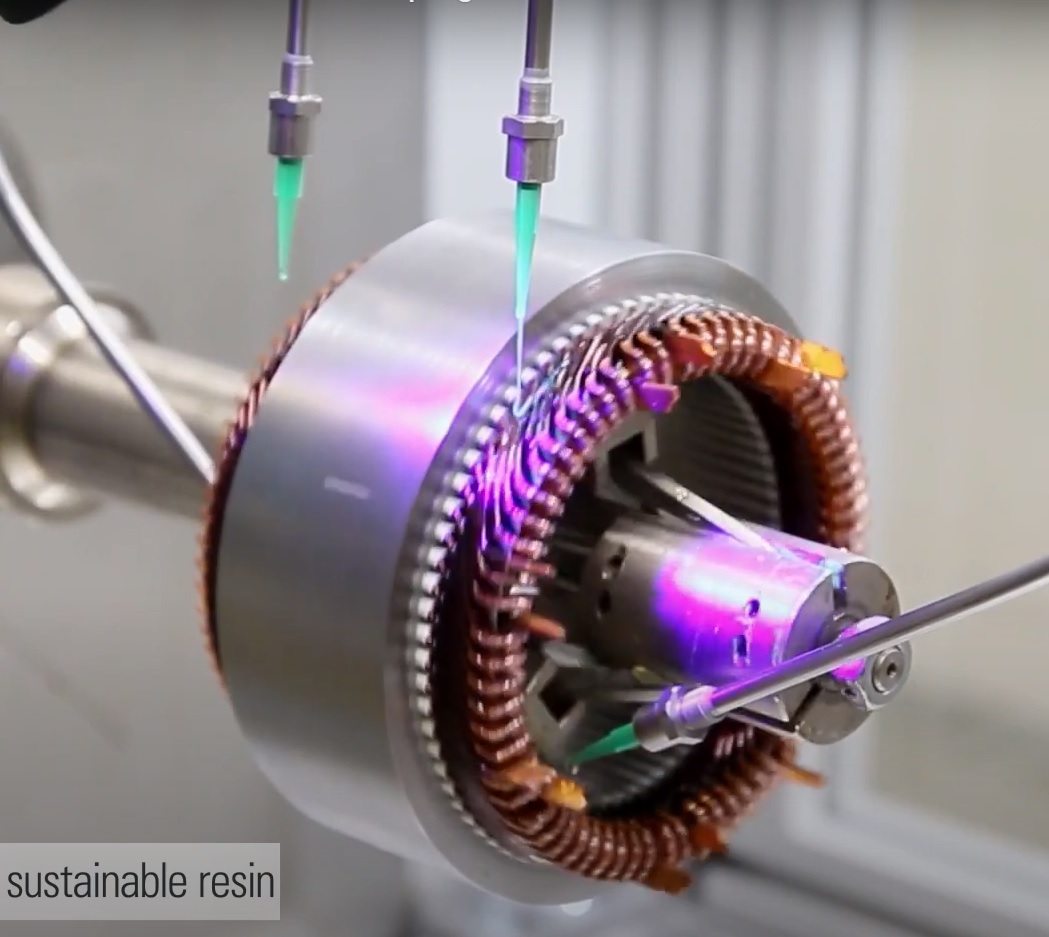

    • UV/RT/Heat Cure and Trickle Type

UL Varnishes

  • Solventless
  • Water Based
  • Solvent Type(Heat Cure)
  • Solvent Type(RT Cure)
  • Spray Can
  • Varnish Remover/Cleaner
Solventless Type Color Viscosity Solid Content
(%)
Curing
Schedule
Thermal Class
(℃)
PDF
468-2FC Amber 290-400 100 135℃ × 2-4hr 240
468-2-7FC-55F Light Brown 4000-8000 100 135℃-150℃ × 3-4hr 240
605 Amber 600-1000 100 135℃-177℃ × 2-3hr 180
478 Amber 1500-4500 100 150℃-160℃ × 4-6hr 220
230 (AB) Amber 3000-6000 100 60℃ × 30min or
100℃ ×15min
155
50VTC Amber 150-250 100 149℃-163℃ × 1-3hr 240
600 Hi Bond (AB) Amber 235-305 100 149℃-177℃ × 30min 200
6183VT (AB) Amber 150-250 100 104℃ × 30min  or
121℃ × 20min
240
Water Based Color Viscosity Solid
Content(%)
Curing
Schedule
Thermal
Class(℃)
PDF
1000-70 Clear Yellow 1000-3000 70 135℃-150℃ × 2-4hr 240
GRC59 Clear 10-1000 30 150℃ × 2-4hr 220
2500-35 Clear 200-2000 30 135℃-150℃ × 2-4hr 240
H2001 Clear 360-600 46 25℃ x 1-2day 180
H2002 Red 1100-1300 47 25℃ x 1-2day 180
Solvent Type
(Heat Cure)
Color Viscosity Solid Content
(%)
Curing
Schedule
Thermal Class
(℃)
PDF
V-1380FC Dark Amber 150-300 48 120℃-135℃ × 1-6hr 240
Y-210 Amber 150-250 48 150℃-163℃ × 2-4hr 220
923-50 Amber 900-1500 49 162℃-191℃ × 1-12hr 220
885 Clear 200-400 50 110℃-150℃ × 1-4hr 180
Solvent Type
(RT Cure)
Color Viscosity Solid Content
(%)
Tack Free
Time
Curing
Schedule
Thermal Class
(℃)
PDF
V-1630FS Transparent 30-70 35 25℃ × 15min 25℃ × 24hr or
80℃ × 2hr
180
V-1630FS B Black 100 40 25℃ × 20min 25℃ × 24hr or
80℃ × 2hr
180
2001CW Clear 1100 40-50 30℃ × 25-35min 25℃ × 24hr or
80℃ × 20-30min
155
2001R Red 1300 39-43 30℃ × 15-20min 25℃ × 24hr or
80℃ × 20-30min
155
VA42 Red 310-380 52 25℃ × 15min 25℃ × 24hr or
80℃ × 2hr
180
77X-010 Amber 40-100 36 25℃ × 30min 25℃ × 24hr or
80℃ × 2hr
200
CE-1171 Transparent 900 30 25℃ × 20min 25℃ × 24hr or
80℃ × 2hr
125
B-277-2 Clear 45-100 35 25℃ × 15min 25℃ × 1-2hr 180
80361FS Clear 30-75 35 25℃ × 15min 25℃ × 24hr 180
Spray Can
(RT Cure)
Color Viscosity Solid Content
(%)
Tack Free
Time
Curing
Schedule
Thermal Class
(℃)
PDF
2001CW Clear Spray Can 23-27 30℃ × 5-10min 25℃ × 24hr or
80℃ × 20-30min
155
2001R Red Spray Can 23-27 30℃ × 7-9min 25℃ × 24hr or
80℃ × 20-30min
155
CE-1170 Transparent Spray Can 30 25℃ × 20min 25℃ × 24hr 125
7001-01
7001-65
7001-35
Transparent
Red
Black
Spray Can ------- 25℃ × 20min 25℃ × 4hr 155

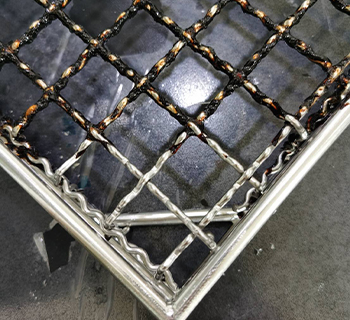

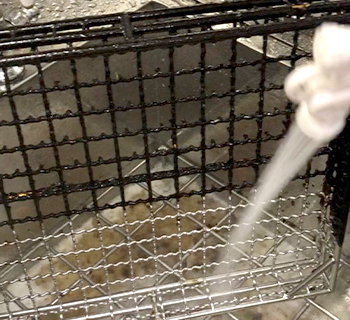

About JR-02

  • Water base.
  • Very low vapor.
  • High flash point >100℃.
  • Reusable.
  • Processing: Dip
  • Packaging: 20Kg
  • Shelf life: 12 months
