Laminate / Solder Pallet

  • Insulation Board
  • Insulation Rod
  • Structural Shapes
  • Solder Pallet

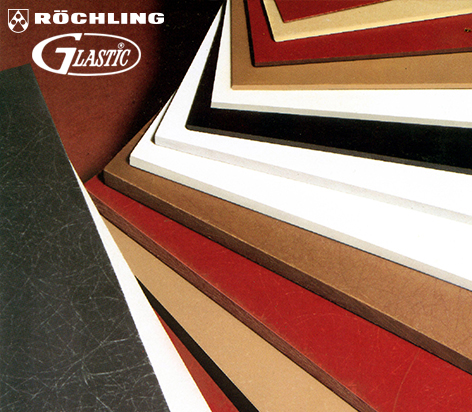

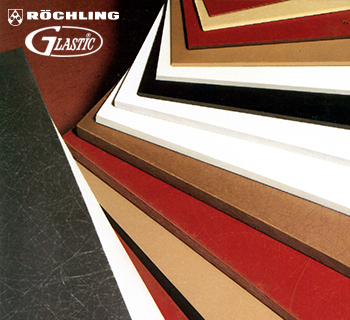

Insulation Board

  • Flame resistance meeting UL 94V0
  • NEMA GPO-1, GPO-2, GPO-3
  • Arc and track resistance, high flexural and impact strength
  • Very low smoke and smoke toxicity in a fire situation

Part No. Color Thermal
Class(℃)
Compliance Purpose
1125(1494) White 130 UL94 V-0 R9599 Lab or chemical environment
T-160(1360) Natural
(GPO-1)
160 UL94 HB Low cost
TSF(1312) Brown
(GPO-1)
130 UL94 HB E23525 Motor and dry-type transformer
UTS(141、1478) Red
(GPO-2)
130、160 UL94 V-0 E81928 Switch plate, control panel, terminal board
1130 Gray
(GPO-3)
UL94 V-0 R9599 Transit industry and structural application
UTR(1494) Red
(GPO-3)
160 UL94 V-0 E81928 Switch plate, control panel, arc resistance
1580 White
(GPO-3)
140 UL94 V-0 E81928 Flyback transformer and arc stack assemblies
SG-200(1906) Natural/Tan
(GPO-1)
210 UL94 HB E81928 Dry-type transformer
(Replace epoxy-bonded mica)
FHT(1800) Natural/Cream 200 UL94 HB E81928 Dry-type transformer
CBC/CBC-C/SPM-11 Blue/Black/Red 300 - Circuit Board Carrier Material
Heat
Insulating Board
(HT200)
White 288 - Reduce heat loss

Contact for Mylar 、 Kapton 、 Nomex 、 DMD 、 FR4 、Bakelite、Kraft.

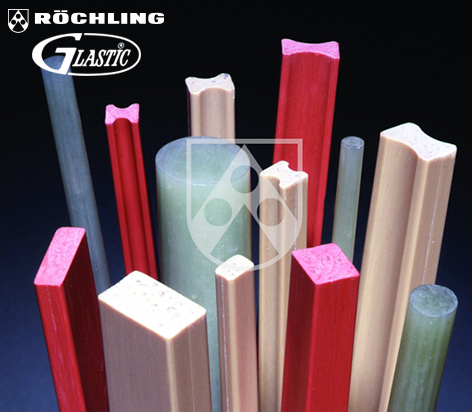

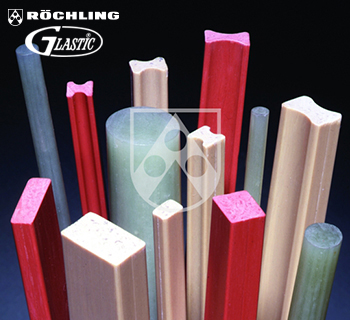

Fiberglass Reinforced Plastic(FRP) Rod / Tubing

  • Solid Rod: MTS (Red)、SG-200 (Tan)
  • Tubing:UTR (Black、GPO-3)
  • High physical、dielectric strength。Low water absorption
  • Flame resistance meeting UL 94HB (E81928)
  • Widely range of structural and electrical applications
  • Rectangular & Square、Dogbone、Round Rod、”A” Shape

Electrical Insulating Structural Shapes

  • Red (GPO3),160℃ working temperature

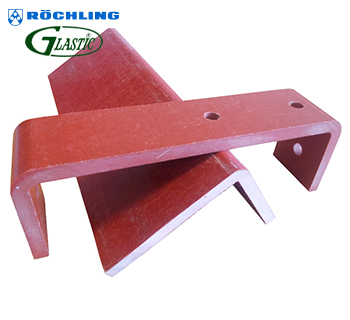

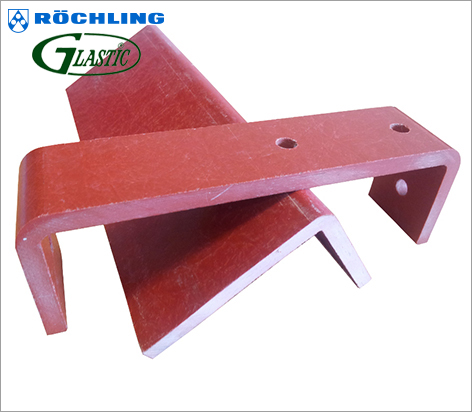

  • Channel、Hat Shaped Channel、Leg Angle、Square
  • Flame resistance meeting UL 94V0 (E23525)
  • Transformer、Distribution box or system

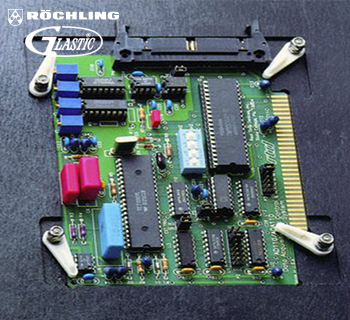

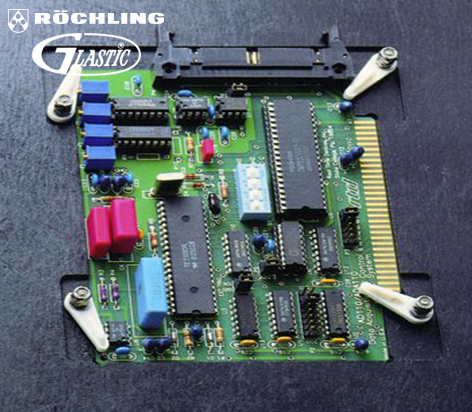

Solder Pallet

  • Suitable for Reflow and Wave Soldering
  • Low Thermal Conductivity Helps Maintain the Temperature Can be used at 300℃ over 10,000 times
  • Size: 2M(L) x 1M(W) x 4-12mm±0.05mm(T)

General Information &
Properties
CBC-C
Standard Color Black
ESD Safe Yes
Surface Resistivity
(ohms/square)
105 ~ 109
Flexural Strength at 25℃
(psi)
51,000
Tensile Modulus
(psi)
2.2 x 106
Comp. Strength
(psi)
71,000
IZOD Impact Strength
(ft.lb./in.)
13
Hardness (Barcol) 92-97
Coefficient of
Thermal Expansion
(in/in/ ℃ )
1.31 x 10-5
Maximum Surface
Operating Temp. (℃)
300 ℃
Thermal Conductivity
(btu/hr/ft 2/in/ ℉ )
2.2
Water Absorption(%) < 0.2
Specific Gravity 1.9
